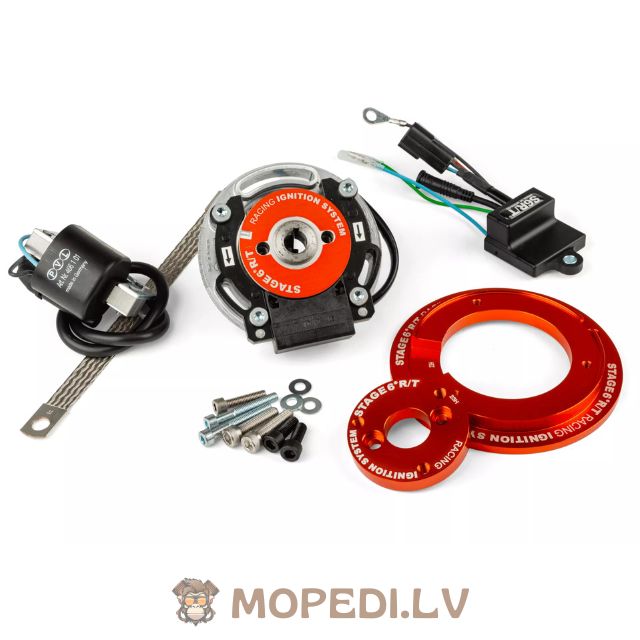

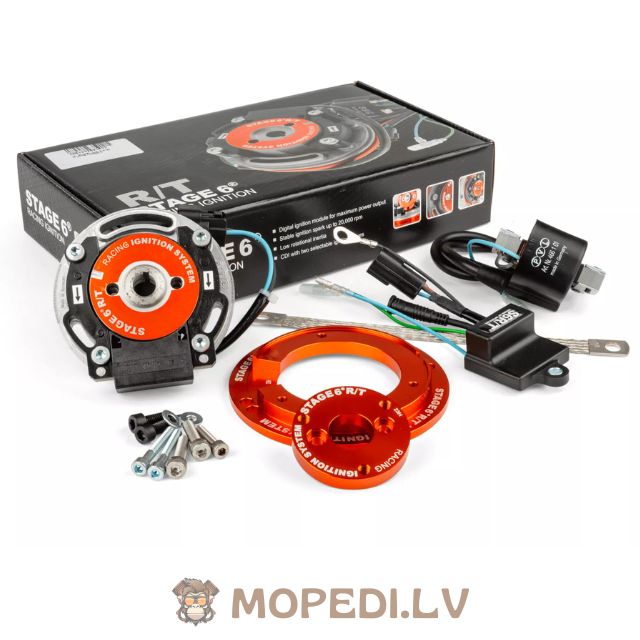

Inner Rotor Ignition Stage6 R/T MK2 – Yamaha / Malaguti (Minarelli engines)

The legendary PVL internal rotor ignition used in Stage6 R/T racing systems has received a major upgrade! The Stage6 R/T MK2 inner rotor ignition for Yamaha, MBK, Malaguti and other scooters with Minarelli 50cc engines now includes a programmable CDI, giving you full control over the ignition curve and allowing perfect adjustment to your engine configuration and riding style.

Programmable CDI – Optional but Powerful

The included CDI comes preloaded with the latest Stage6 MK2 ignition curves, so the system is fully plug & play even without custom programming.
If you want more control, simply program your own curve using the Stage6 R/T interface and software (sold separately).

3 Options for ignition setup:

• Green wire NOT grounded – Less pre-ignition → Track racing
• Green wire grounded – More pre-ignition → Drag racing
• Custom ignition curve – Requires Stage6 programming interface & software

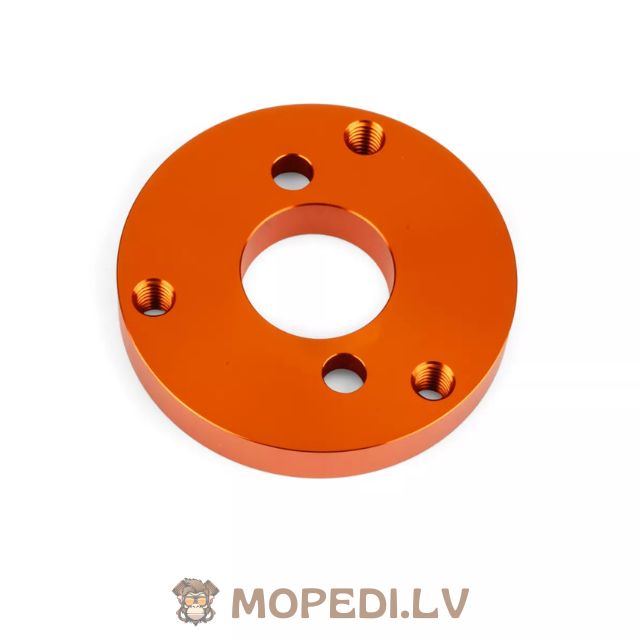

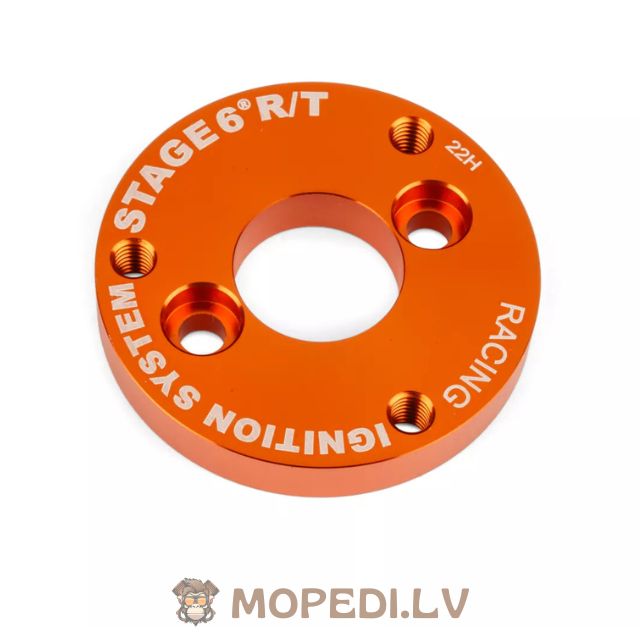

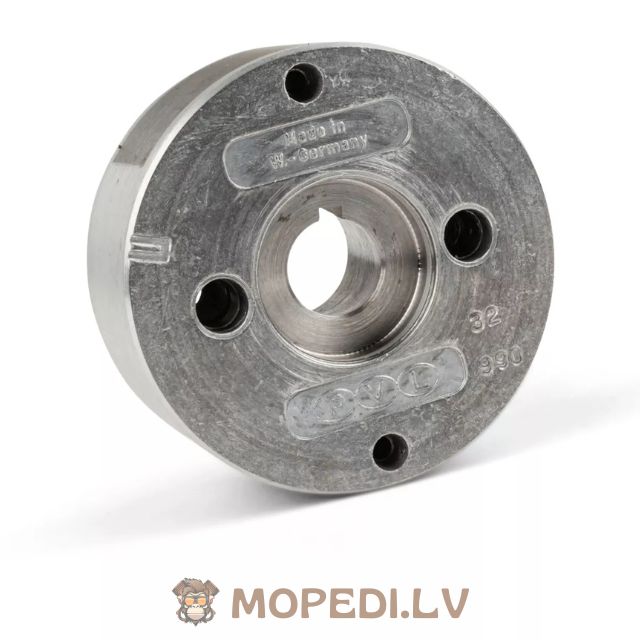

You can also mount an additional flywheel on the rotor to increase inertia and improve power stability at high RPM.

Stage6 x PVL Collaboration

As with previous models, PVL supplies the high-quality hardware, while Stage6 provides the software and racing-proven ignition curves. The result:
A highly efficient, ultra-lightweight racing ignition designed for maximum performance.

Perfect for high-end racing engines, midrace setups and serious tuning projects.

Technical Features – Stage6 R/T MK2

Digital internal rotor ignition :

• Programmed ignition advance up to 20,000 rpm
• 2 preloaded ignition curves (track & drag)

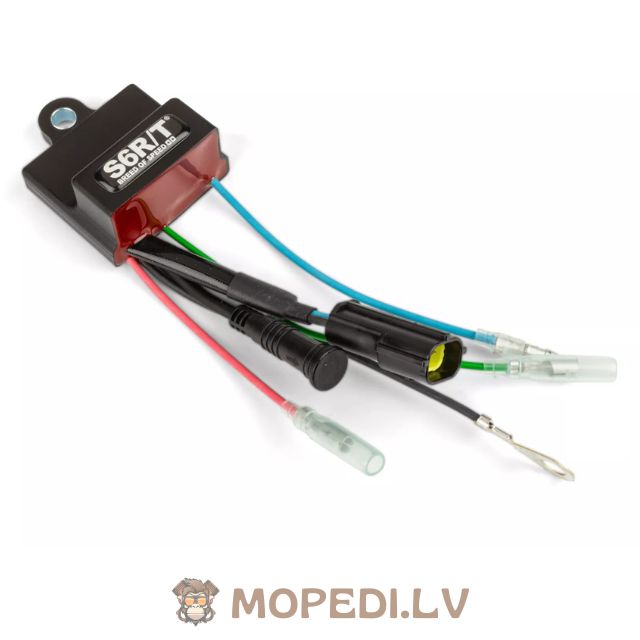

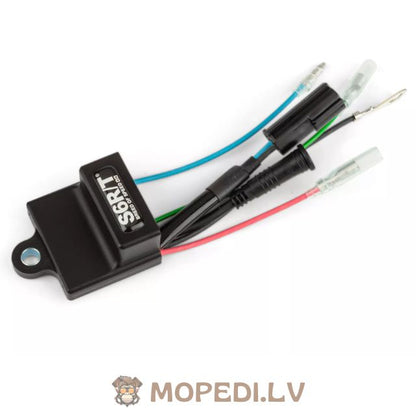

Control Unit (CDI) :

• Digital micro-controller ignition
• Compact, lightweight SMD design

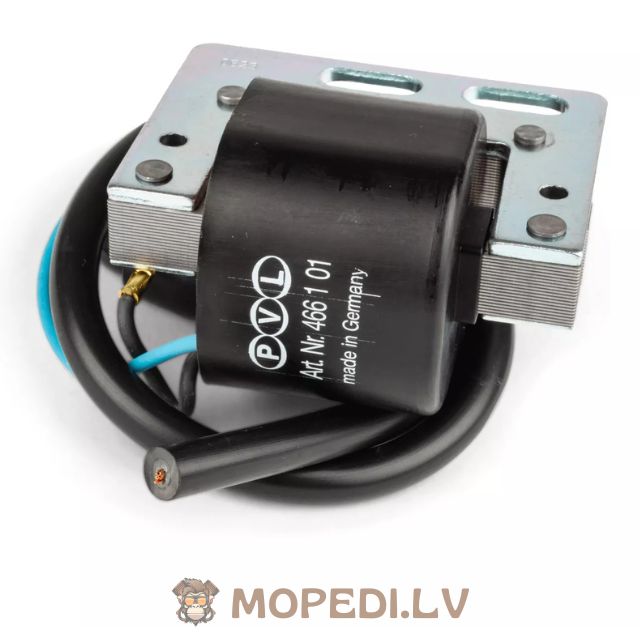

High-Voltage Coil :

• Reliable spark from < 400 rpm
• High-efficiency CDI discharge
• Constant discharge voltage

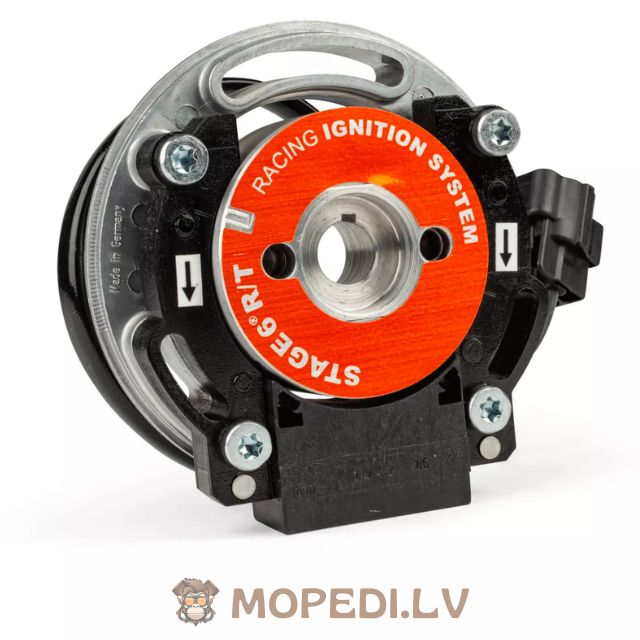

Stator & Rotor Unit :

• Lightweight internal rotor with very low inertia
• Overmoulded stator winding
• Optimized for high-revving engines

Important Notes & Recommendations

• This is a race ignition → no power supply for lights or water pump.
  → A battery is required for electrical functions.
• Not compatible with Malossi MHR Team crankshafts
• Use a racing spark plug + ignition breaker

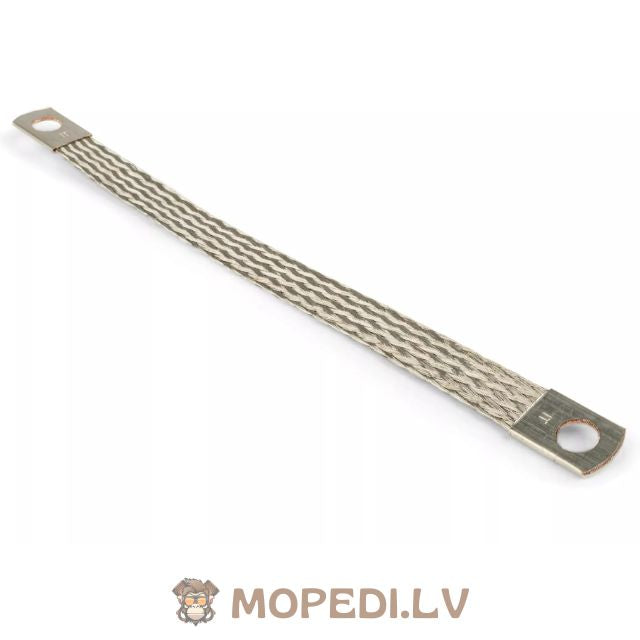

• Ensure a solid ground cable between engine case and chassis (Critical for ignition reliability!)
