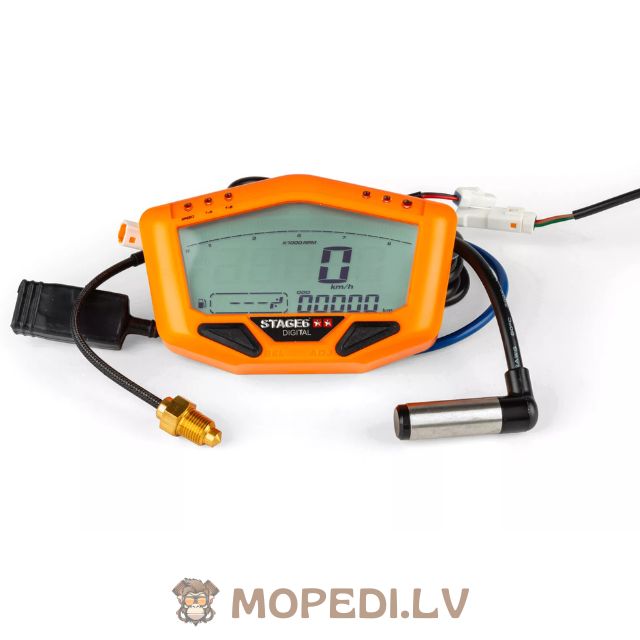

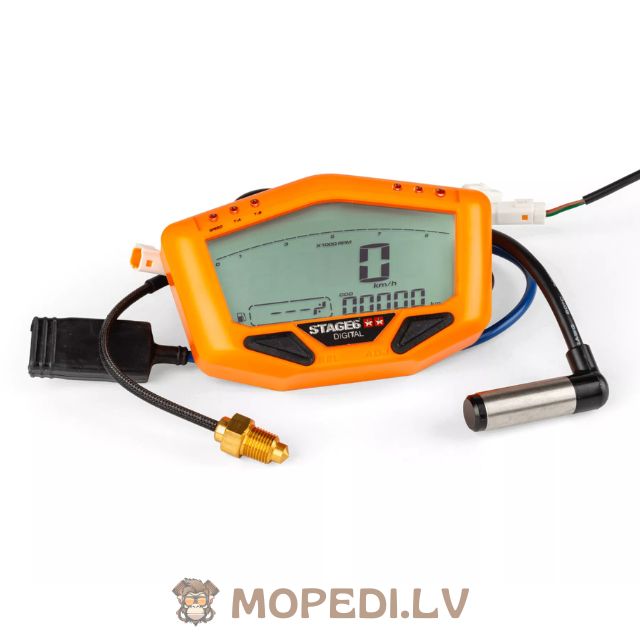

Stage6 R/T Dashboard MK2 – Orange

The popular Stage6 R/T digital speedometer has been upgraded. The MK2 version of the multifunction dashboard now features EGT (Exhaust Gas Temperature) display, turning it into a complete performance monitoring system for tuned and racing setups.

The compact unit (100 × 60 × 20 mm) features a backlit display and operates on 12V vehicle power. RPM is measured inductively, while speed is recorded via a magnetic wheel sensor. Optional speedometer adapters for Yamaha/MBK models allow direct signal transmission via the original speedometer drive.

Suitable for 2-stroke and 4-stroke engines, scooters, 50cc motorcycles (including supermoto), and even cars.

A major highlight of the MK2 version is the integrated EGT function. With an optional EGT sensor (not included), exhaust gas temperature can be monitored in real time to optimize carburetor tuning and prevent engine damage. Maximum values for both water temperature and EGT can be stored via the memory function. Please note: the EGT sensor, extension cable, and manifold clamp must be ordered separately.

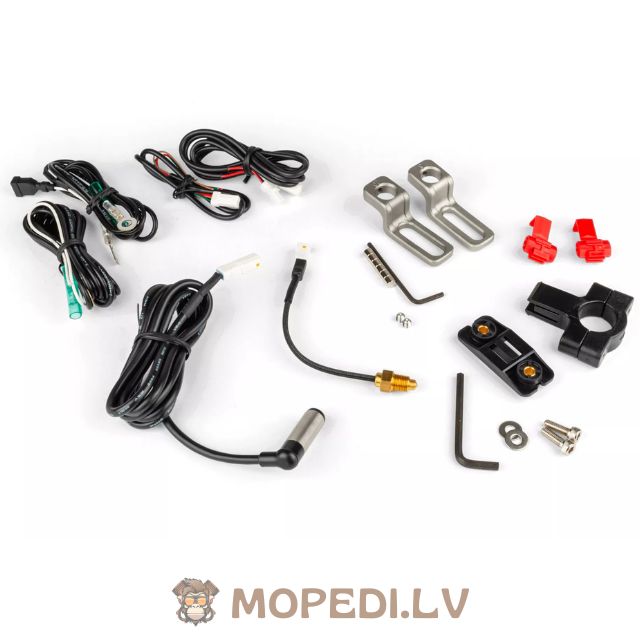

The dashboard is supplied with a PT-1/8 water temperature sensor. Additional temperature sensors (M10 x 1.0 and M14 x 1.25) are available for various Piaggio and Peugeot models as well as supermoto applications.

Functions – Stage6 R/T MK2

• Speedometer: 0–360 km/h (switchable to mph)
• Tachometer: up to 20,000 rpm
• Scalable speed graph
• EGT display (sensor sold separately)
• Thermometer: 0–250°C (PT-1/8 sensor included)
• Hour meter: 0–999.9 h
• Fuel gauge: 0–100%
• Voltmeter: 0–18.0 V
• Odometer
• Shift light
• Top speed memory
• Temperature warning alarm

Integrated performance timer :

• Time to reach a preset speed
• Time to cover a preset distance
