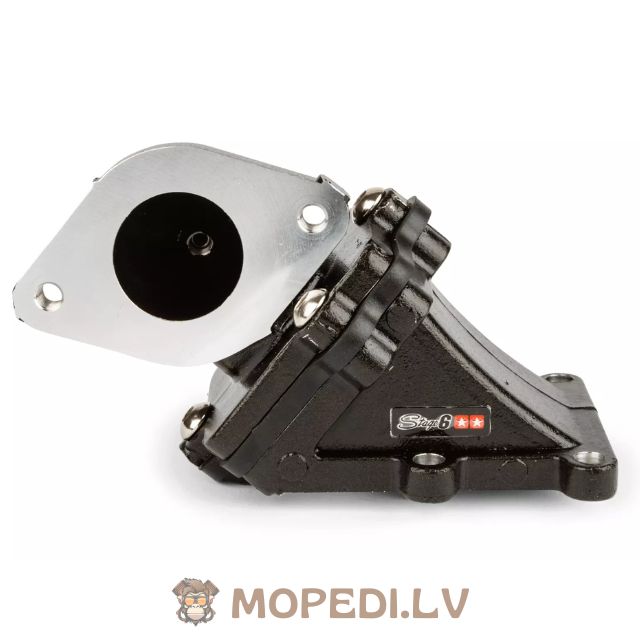

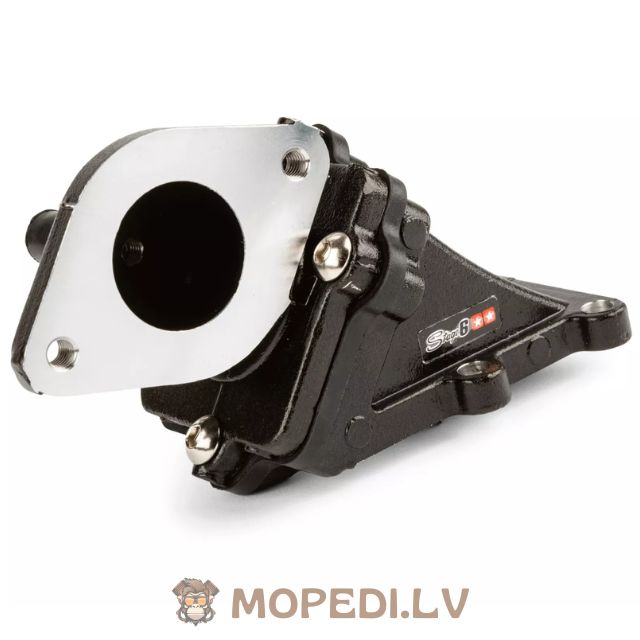

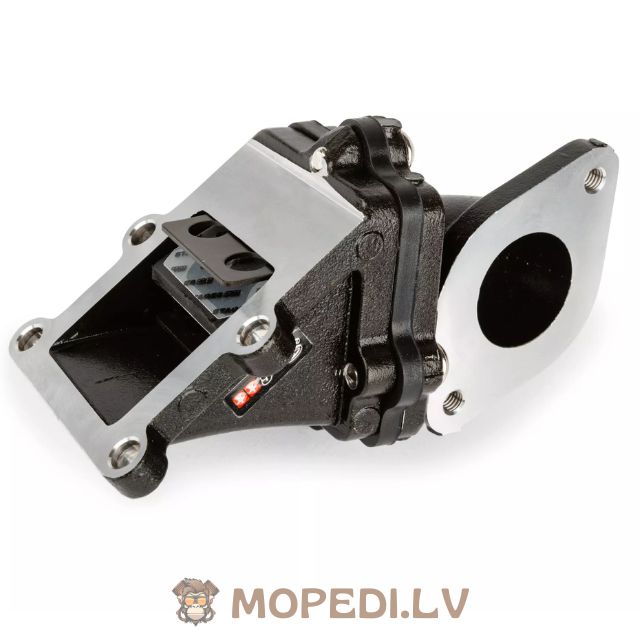

Stage6 MK2 Intake System – Minarelli Vertical

Oversize Stage6 MK2 intake system for Minarelli vertical engines. Designed to remove intake restrictions and improve performance, especially when using larger carburetors.

The system is based on the Stage6 SportPro (NBR) reed valve and allows the use of different horizontal Minarelli reed valves (e.g. Stage6 VForce). Two intake manifolds with matching Venturi stuffers ensure easy fitment for a wide range of carburetors. The aluminum manifold includes oil, vacuum, and boost bottle connections.

Note : Due to the size of the intake system, the plastic air cooling cover may need to be modified.

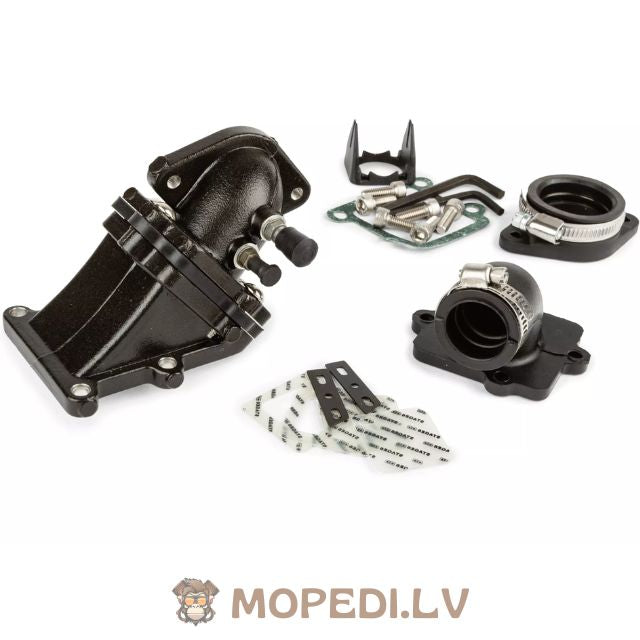

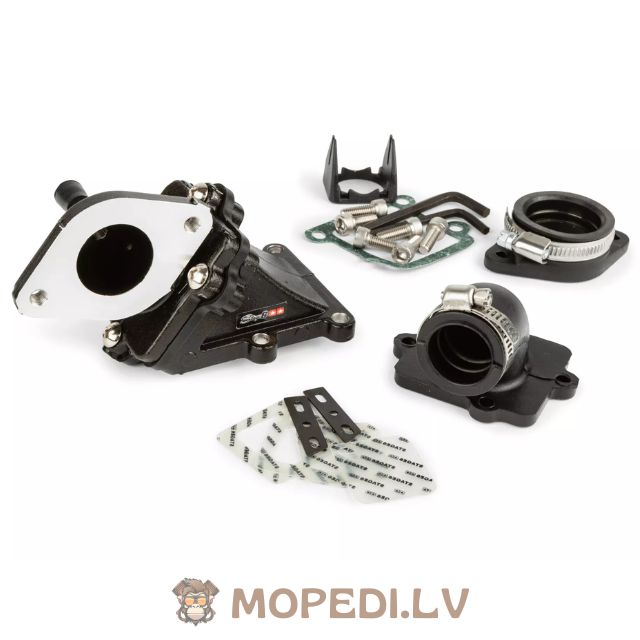

Contents :

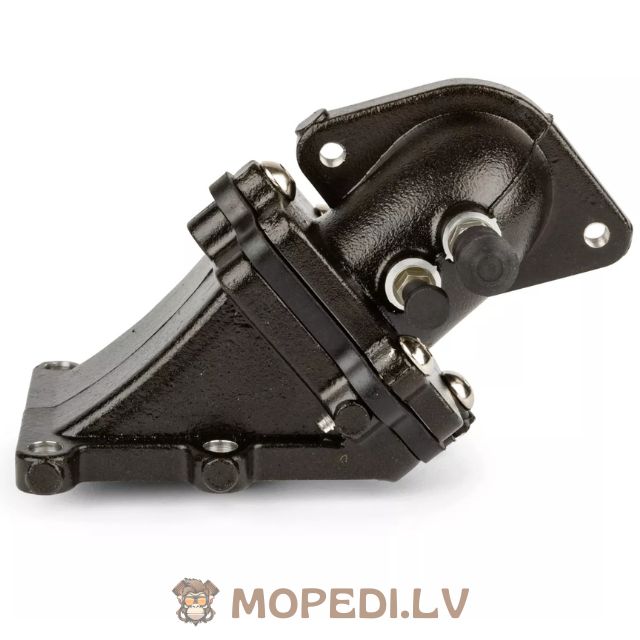

• Aluminum intake manifold (oil & vacuum ports)
• Reed valve with blades

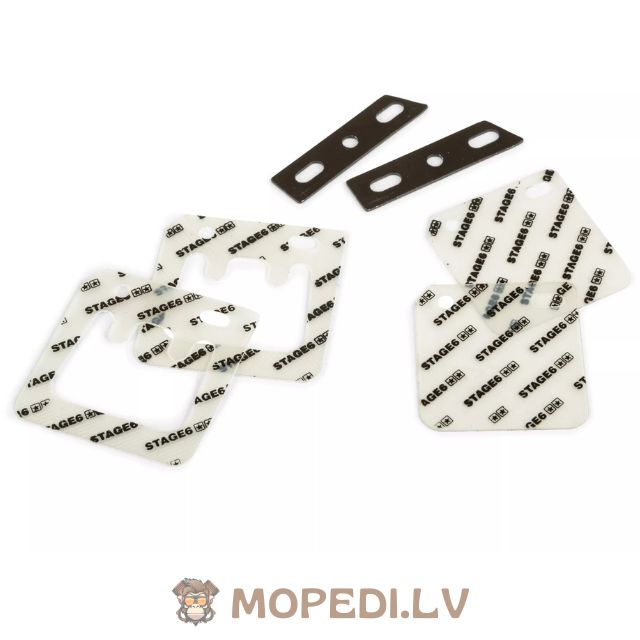

• Glass fiber reeds 0.40 mm
• Aluminum housing
• Venturi stuffers
• Intake rubber 24 mm
• Intake adapter rubber 35 mm
• Gaskets, screws, clamps

Carburetor compatibility:

• 24 mm connection: Dellorto PHVA / PHBN / PHBG (12–21 mm), Gurtner & Weber (12–16 mm), TK / China 2T (12–16 mm)
• 35–36 mm connection: Keihin PWK (19–30 mm), Dellorto VHST (24–28 mm), VHSH 30 mm, PHBH (26–30 mm)

Connection diameter is measured on the carburetor side.
