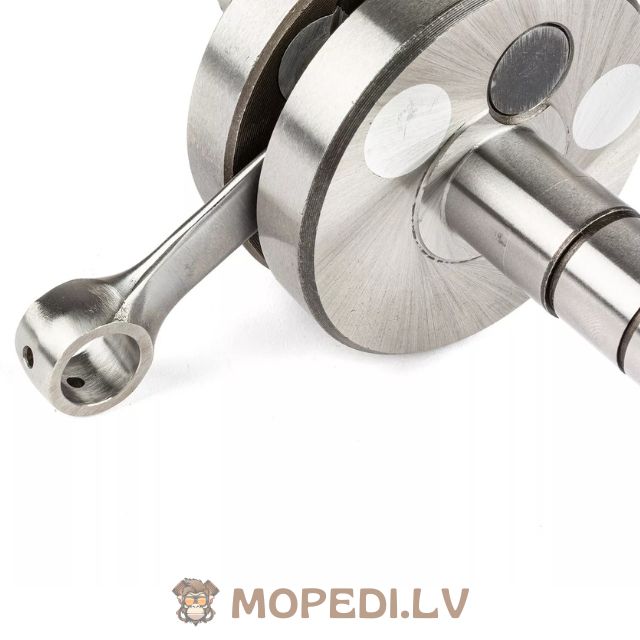

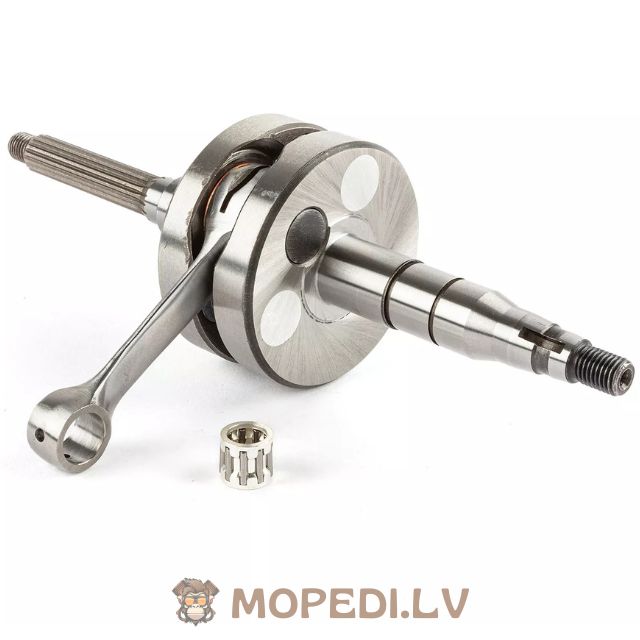

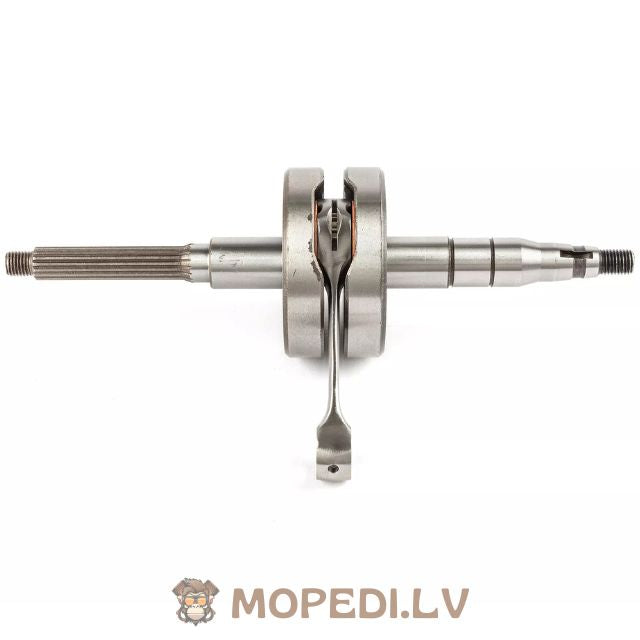

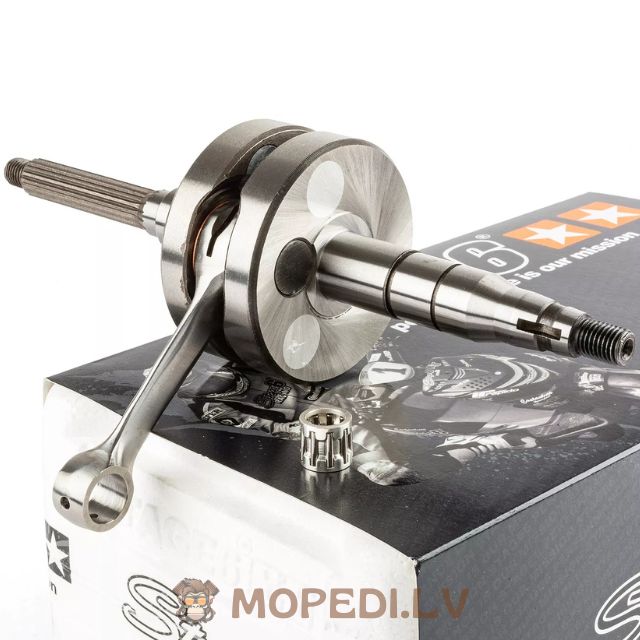

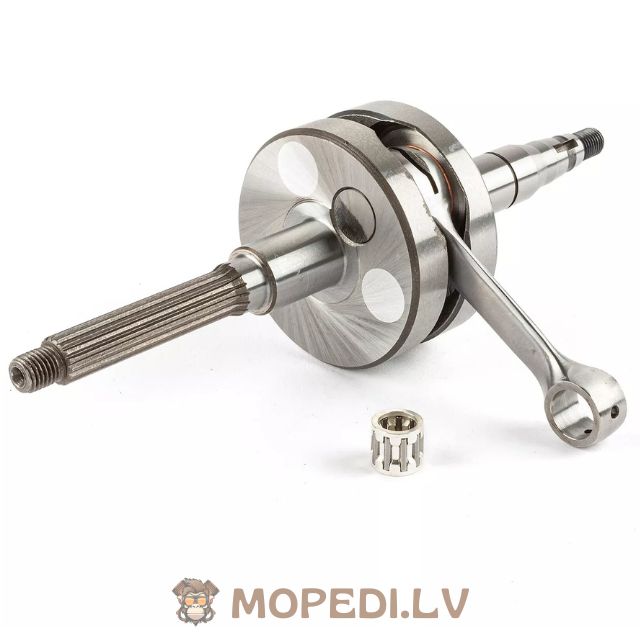

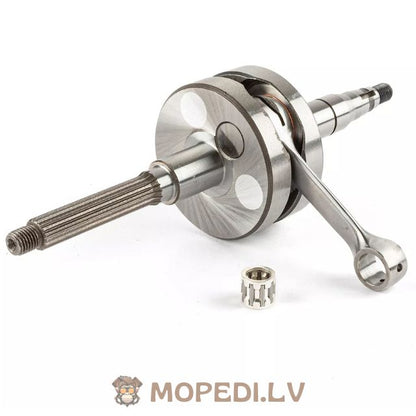

Stage6 Pro Replica Crankshaft 10mm – Minarelli Horizontal (Yamaha Aerox)

The Stage6 Pro Replica 10mm Crankshaft for Minarelli horizontal engines is a high-quality sport crankshaft from Stage6, engineered with the same precision and reliability that define all Stage6 components.

Drawing on years of tuning expertise, Stage6 developed the Pro Replica based on their renowned HPC racing crankshaft. Like the HPC model, it offers outstanding manufacturing quality, premium materials, and perfect balance for superior performance and durability.

Key Features

• Polished original-length connecting rod

• 10 x 14 x 13 mm small end bearing for 12 mm piston pins

• Two anti-friction washers

• Precisely machined steel crank webs

The Stage6 Pro Replica crankshaft is ideal for performance-oriented sport cylinders, especially Stage6 Streetrace 50cc and 70cc cast-iron cylinders. It’s also compatible with other “Original” or “Sport” cylinders producing up to 12 hp and 12,000 rpm.

Technical Specifications

• Connecting rod length: Original

• Stroke: Original

• Piston pin: 10 mm

• Small end bearing: 10 x 14 x 13 mm

• Tuning level: Sport / Entry-level tuning
